vCloud Director and Citrix NetScaler How-To

Ive come across a couple of how-to’s on configuring vCloud Cells in a highly available Load Balanced environment. There is a good overview here by @hany_michael with the always excellent @ccolotti referenced throughout. Ive come across specific posts such as this one from @DuncanYB for F5 Load Balancers…but nothing on Citrixs NetScalers. It must be said that I had help during my initial configuration and troubleshooting from Chris Colotti over a few Twitter DM’s that helped me nut out the Console Proxy setup.

ns_dash

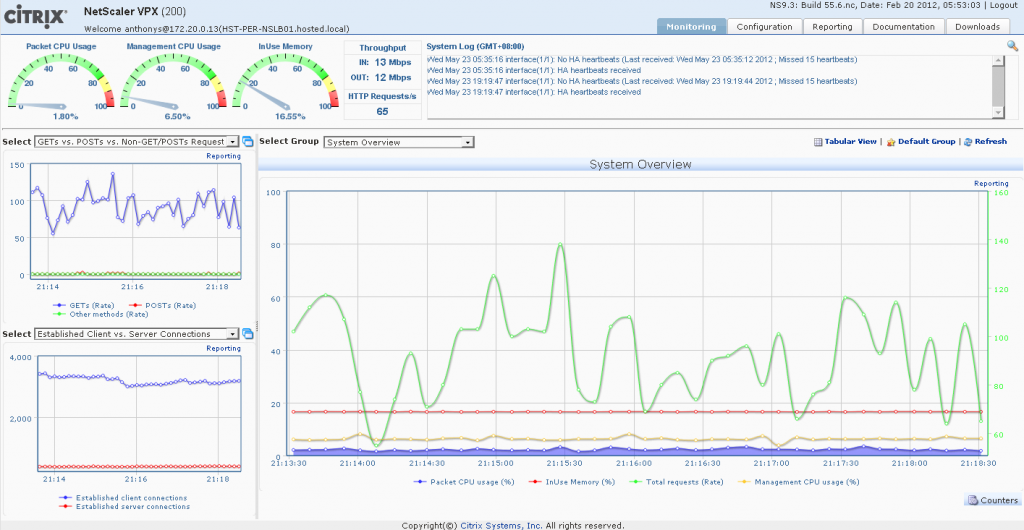

Citrix acquired NetScaler in 2005 and in 2009 released the NetScaler VPX Appliances, which allowed the platform to go virtual. Read more about the NetScalers here This guide is based on the 9.3 VPX platform, but will be good for previous versions and the just released 10x platform. As a side note, Ive worked with Cisco 4840 and Juniper DX Load Balancers and I have to say that the NetScalers are far and away the best platform Ive come across. Feature packed for more than just Load Balancing, Ive found the interface intuitive and performance (even in a Virtual Appliance) has been rock solid and they offer Service Provider Licensing!

Environment Overview:

I wont go too deep into the specifics of the vCloud setup, but in a nutshell we are talking about a generic two cell setup connected to a typical vCenter design as governed by the vCat 2.0 Both cells are in a private VLAN fronted by the NetScaler which in turn is fronted by a border gateway that handles the public to private IP NATing and Firewalling. The NetScaler Visualiser below shows the basic layout from the Virtual Server IP’s and Service Names, through to the Web UI and Console Proxy Services on both cells.

vcloud_ns_1

CISCO ASA Configuration:

There is nothing special here as the ASA sits in front of the NetScaler and handles the NAT’ing of the Public IP to the Private Virtual IP on the NetScalers and also acts as the Firewall.

ns_menu_servers

NetScaler Config – Server Setup:

Once logged into the Web UI of the NetScaler the first thing you want to do is add both vCloud Cells as Server Objects. Expand the Load Balancing Tree Root and select Servers. From there Right Click in the center pane and select Add. What you want to do here is create two entries per Cell…one for the main Web Portal Interface IP, and one for the Console Proxy Interface IP.

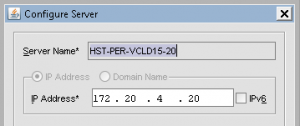

There isn’t a lot of detail to enter, Just the Server Name and the IP Address as shown below

ns_conf_servers

In my setup with two cells I have four server entries in the central pane as shown below.

ns_info_servers

TIP: With the NetScaler if you click Add on a previously created object you will be presented with the settings of the selected object. From there its potentially a quick edit for the new element.

NetScaler Config – Service Setup:

ns_menu_services
There are a couple of ways to configure services and it comes down to whether you want to group like services into Service Groups, or configure individual services per Server instance.  In this example I have used individual Services as selected under the Load Balancing Tree root shown on the right. These options come together when configuring the Virtual Servers and boil down to being able to control weightings on specific Services on a per server basis, or grouping a farm of services together in the group. In either example you can take the underlying server in and out of production at will via the Servers section.

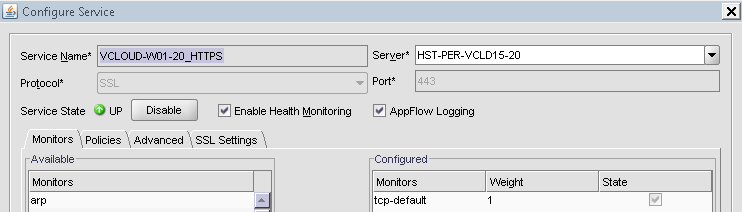

The Web Portal vCloud Cell interface is setup as shown below.

ns_https_services

Enter in the Service Name and select the Server from the dropdown. Protocol for this interface is SSL and the Port is 443.

ns_https_advanced_services

TIP: Under the Advanced tab you should see the Client IP Header as a globally set value similar to the above. This allows us to have the vCloud logs report back the originating client IP instead of the IP of the load balancers…handy for advanced logging and troubleshooting.

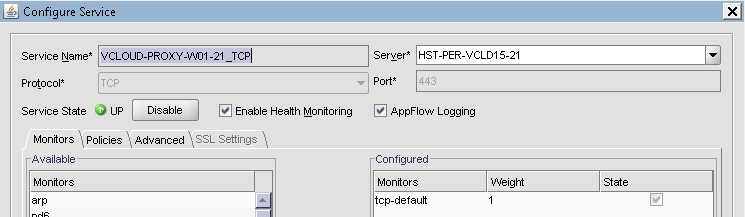

For the vCloud Cell Console Proxy Interface the single biggest Gotchya is if you configure the protocol as SSL. @ccolotti guided me through my initial problems with this setup and got me to configure the protocol as TCP. Once that was configured as show below, I was able to view to console.

ns_tcp_services

For me, this is one of the real features that makes a Hosted/Cloud Server truly functional. Having the console available via the management layer is a must and is pretty much standard with most Management Layers out there…along with the ability to stop/start/reset VM’s. At this point I would mention that one of my biggest gripes with vCloud is that there is no real time resource graphs or usage stats…hopefully this is added for future relases – Take that to be Feature Request VMware 🙂

At the end of this process you should see the following in your central window pane:

ns_info_services


NetScaler Config – Virtual Server Setup:

ns_menu_virtualserver

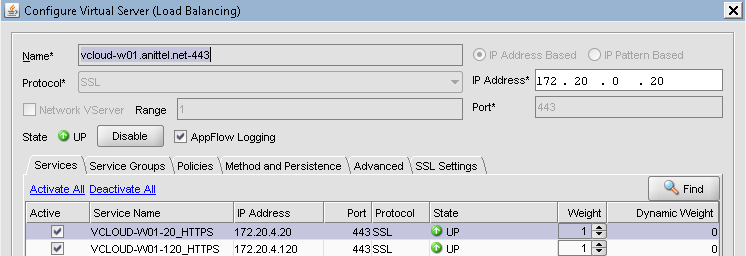

Once you have configured your Servers and Service Groups, the final part is to put it all together and configure the Virtual Servers. The IP that you allocate (the VIP) is what you NAT your public IP to.  Right-Click on Add to get the Configure Virtual Server window as shown below. Enter in a Name, you IP Address and select SSL or TCP (depending on if setting up the Web Portal or Console Proxy) as the Protocal. The Port remains as 443On the Services Tab bind the Service Name’s of the Services we created in the steps above.

ns_https_virtualserver

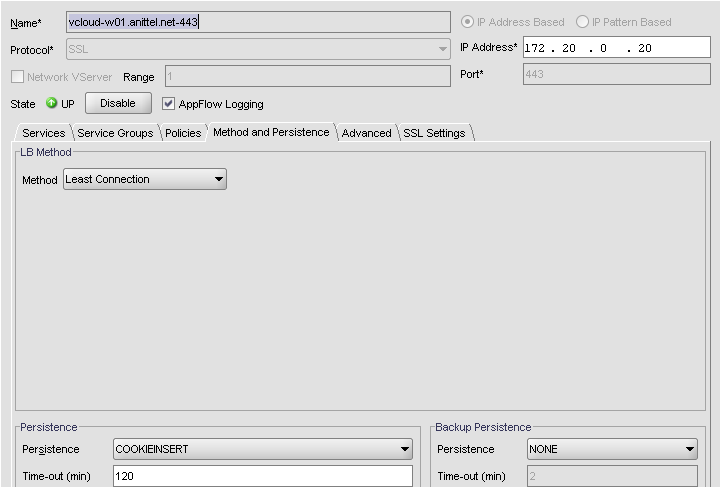

Click on the Method and Persistence Tab and here you want to set your LB Method Algorithm and your Persistence Method. There are a few to choose from in this list provided by the NetScaler, but I tend to always choose Least Connections which will send the next connection request to the server with the least number of active connections. One thing you don’t want in a load balanced setup for the Web Portal or Console Proxy is have sessions bouncing between Cells without stickiness which leads to session state loss. The Persistence method can be IP based or Cookie based for the Web Portal, but the Console Proxy needs to be IP Based as Cookies isn’t an option with TCP set as the protocol. Time-out can be set to any value you see fit, but I like setting this to 120 minutes to ensure a long stick.

ns_https_persistance_virtualserver

The final step in setting up the Virtual Server is to bind an SSL certificate. Click on the SSL Settings tab. Assuming you have imported your SSL certificate into the NetScaler prior to setup, select the certificate from the left pane and click Add.

At the end of this process you should see the following in your central window pane:

ns_info_virtualserver

vCloud SSL and WildCards:

Early on in my vCloud testing, I spent a huge amount of time trying to import a wildcard SSL certificate into the KeyStore without much luck. From what I could find on-line there wasn’t a lot of good how-to’s on getting this process down-pack with vCloud…let alone with any JAVA based KeyStore setup. My workaround was to put a Load Balancer in front of the cells. This was, the clients connect in over SSL to the NetScaler (with a legit wildcard SSL) and the NetScaler can connect to the cells over SSL/TCP (with with default vCloud certificate) ignoring the certificate warning, which no one like to see on a production system.

Conclusion:

For a robust, redundant and highly available vCloud Cell design, a solid Load Balancer fronting the platform is a must. The Citrix NetScalers are  impressive appliances and are an excellent addition to any vCloud implementation.
