Infrastructure as Code vs RESTful APIs … A Working Example with Terraform and vCloud Director

Last week I wrote an opinion piece on Infrastructure as Code vs RESTful APIs. In a nutshell, I talked about how leveraging IaC instead of trying to code against APIs directly can be more palatable for IT professionals as it acts as a middle man interpreter between yourself and the infrastructure endpoints. IaC can be considered a black box that does the complicated lifting for you without having to deal with APIs directly.

As a follow up to that post I wanted to show an example about the differences between using direct APIs verses using an IaC tool like Terraform. Not surprisingly the example below features vCloud Director…but I think it speaks volumes to the message I was trying to get across in the introduction post.

The vCloud Director Terraform Provider was recently upgraded with the release of vCloud Director 9.7 and now sits at version 2.1 itself.

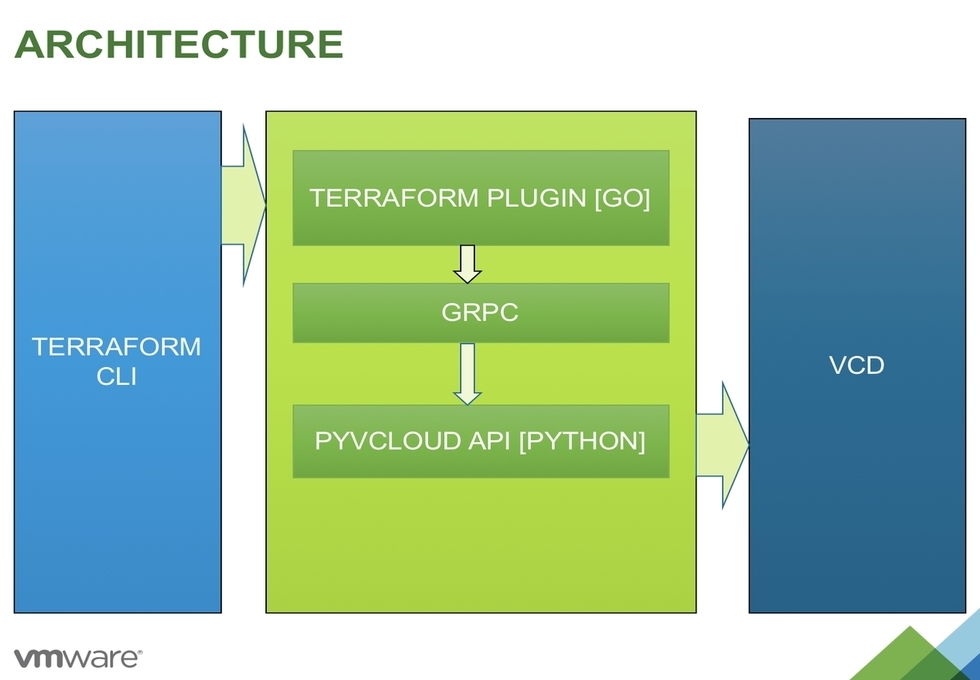

The Terraform Provider has been developed using Python and GO. It uses Client-Server model inside the hood where the client has been written using GO and server has been written using Python language. The core reason to use two different languages is to make a bridge between Terraform and Pyvcloud API. Pyvcloud is the SDK developed by VMware and provides an medium to talk to vCloud Director. Terraform uses GO to communicate where Pyvcloud has been written in Python3.

The above explanation as to how this provider is doing its thing highlights my previous points around any IaC tools. The abstraction of the infrastructure endpoint is easy to see… and in the below examples you will see it’s benefit for those who have not got the inclination to hit the APIs directly.

The assumption for both examples is that we are starting without any configured Firewall or NAT rules for the NSX Edge Services Gateway. Both methods are connecting as tenant’s of the vCD infrastructure and authenticating with Organisation level access.

The end result will be:

  • Allow HTTP, HTTPS and ICMP access to a VM living in a vDC
    • External IP is 82.221.98.109
    • Internal IP of VM is 172.17.0.240
    • VM Subnet is 172.17.0.0/24
  • Configure DNAT rules to allow HTTP and HTTPS
  • Configure SNAT rule to allow outbound from the VM subnet
Configuring Firewall and NAT Rules with RESTful API:

Firstly, to understand what vCD API operations need to be hit, we need to be familiar with the API Documentation. This will cover initial authentication as either a SYSTEM or Organizational admin and then what calls need to be made to get information relating to the current configuration and schema. Further to this, we need to also be familiar with the NSX API for vCD Documentation which covers how to interact with the network specific API operations possible from the vCD API endpoint.

We are going to be using Postman to execute against the vCD API. Postman is great because you can save your call history and reuse them at a later date. You can also save variable into Workspaces and also insert specific code to assist with things like authentication.

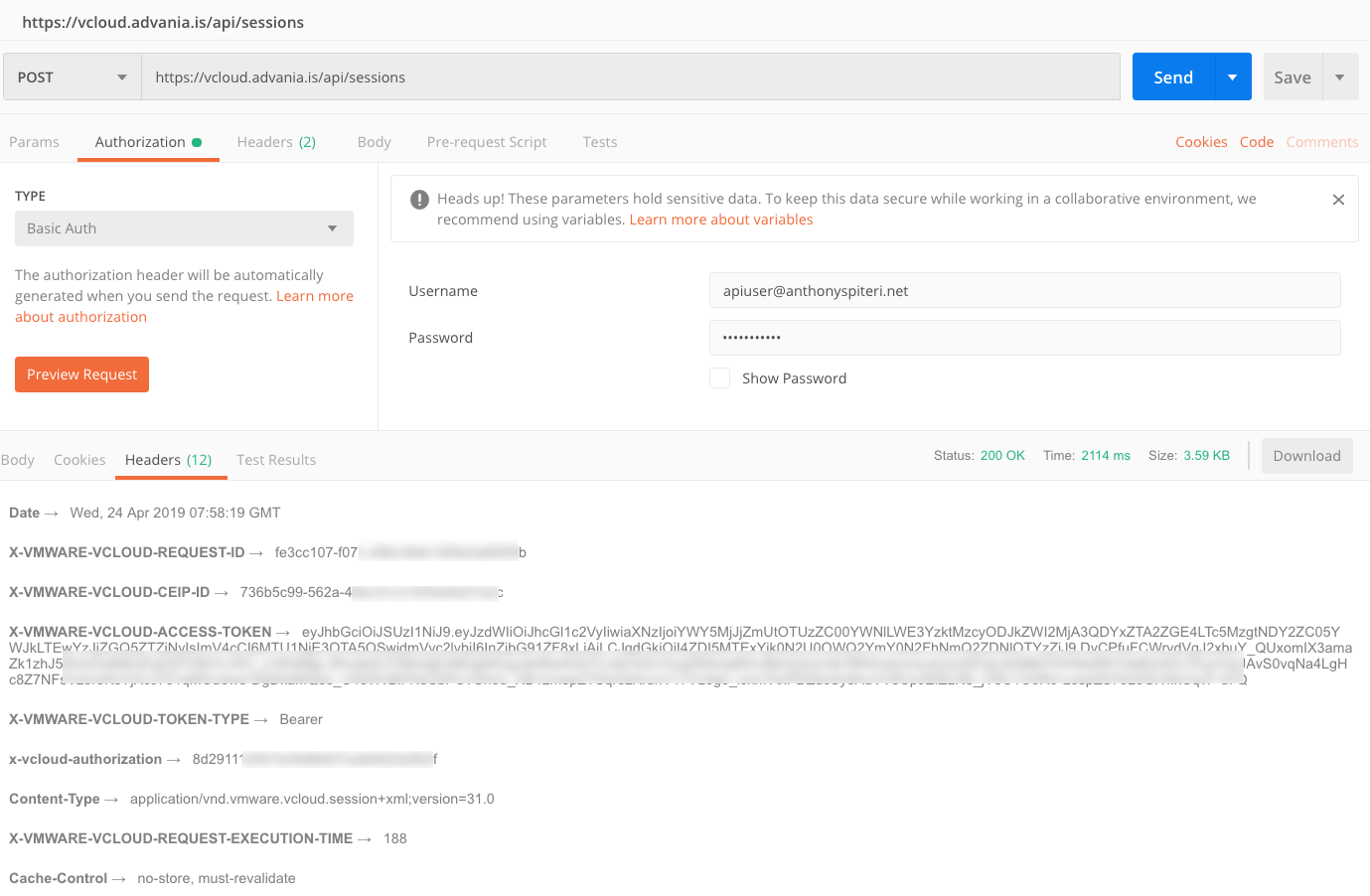

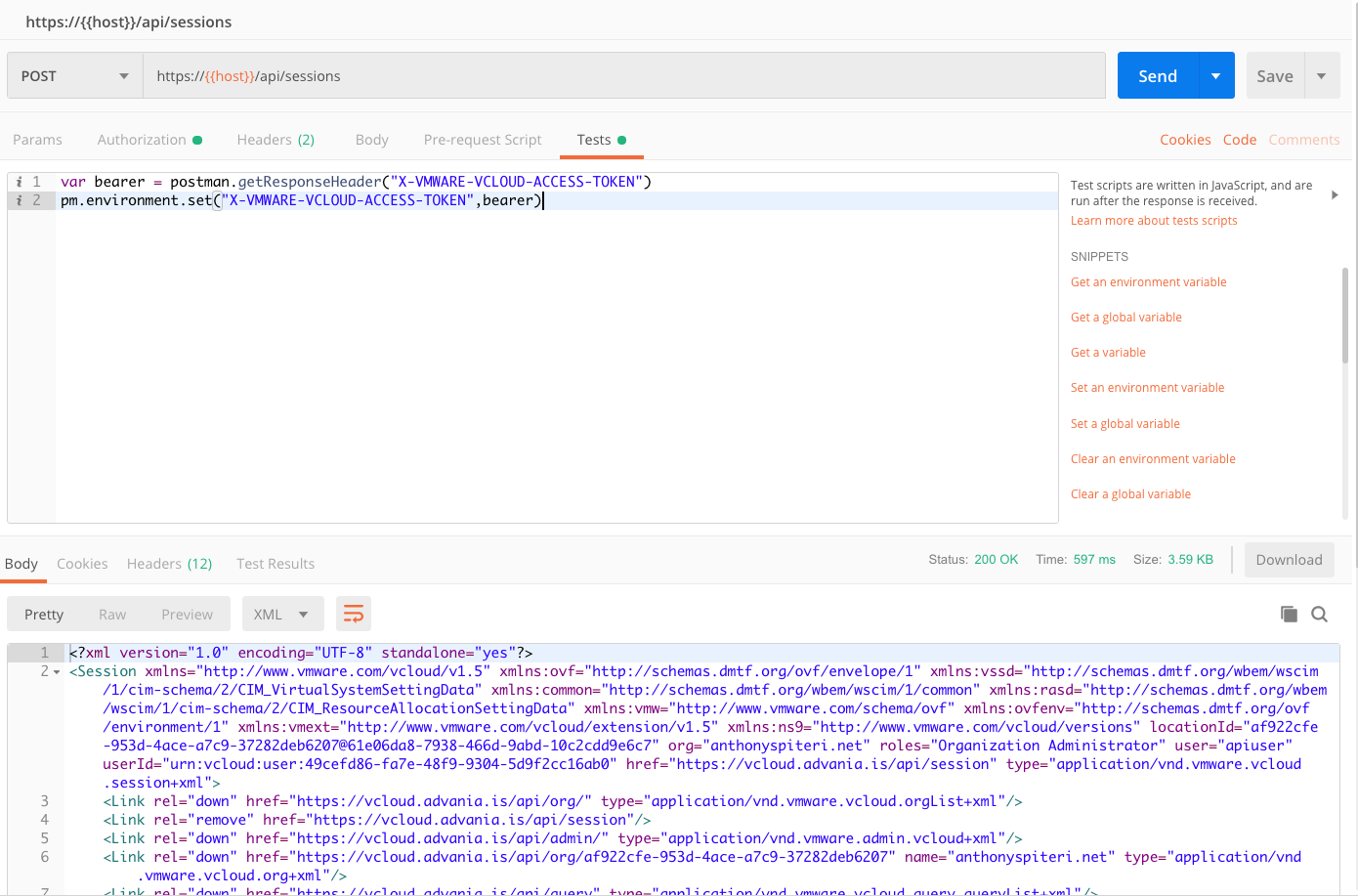

First step is to authenticate against the API and get a session authorization key that will allow you to feed that key back into subsequent requests. This authorization key will only last you a finite amount of time and will need to be regenerated.

Because we are using a decent RESTful API Client like Postman, there is a better way to programatically authenticate using a bearer access token as described in Tom Fojta’s post here when talking to the vCD API.

Once that is done we are authenticated as a vCD Organizational Admin and we can now query the NSX Edge Services Gateway (ESG) Settings for Firewall and NAT rules. I’ll walk through configuring a NAT rule for the purpose of the example, but the same method will be used to configure the Firewall as well.

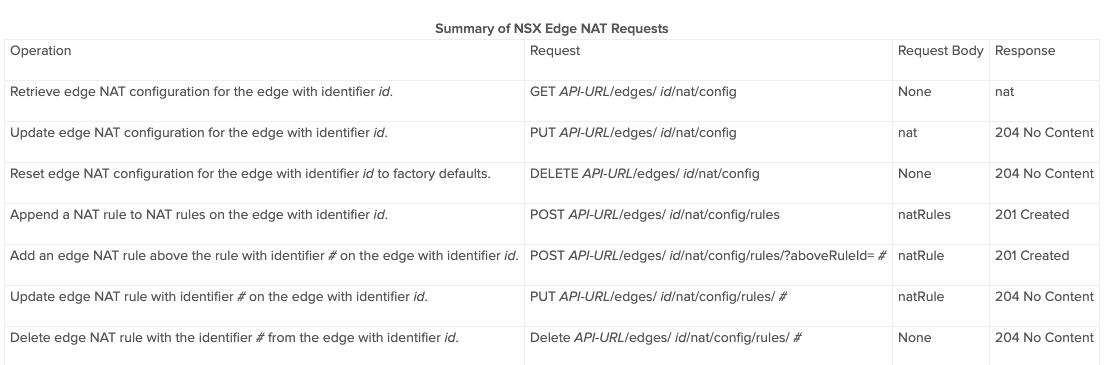

A summary of the NAT requests can be seen below and found here.

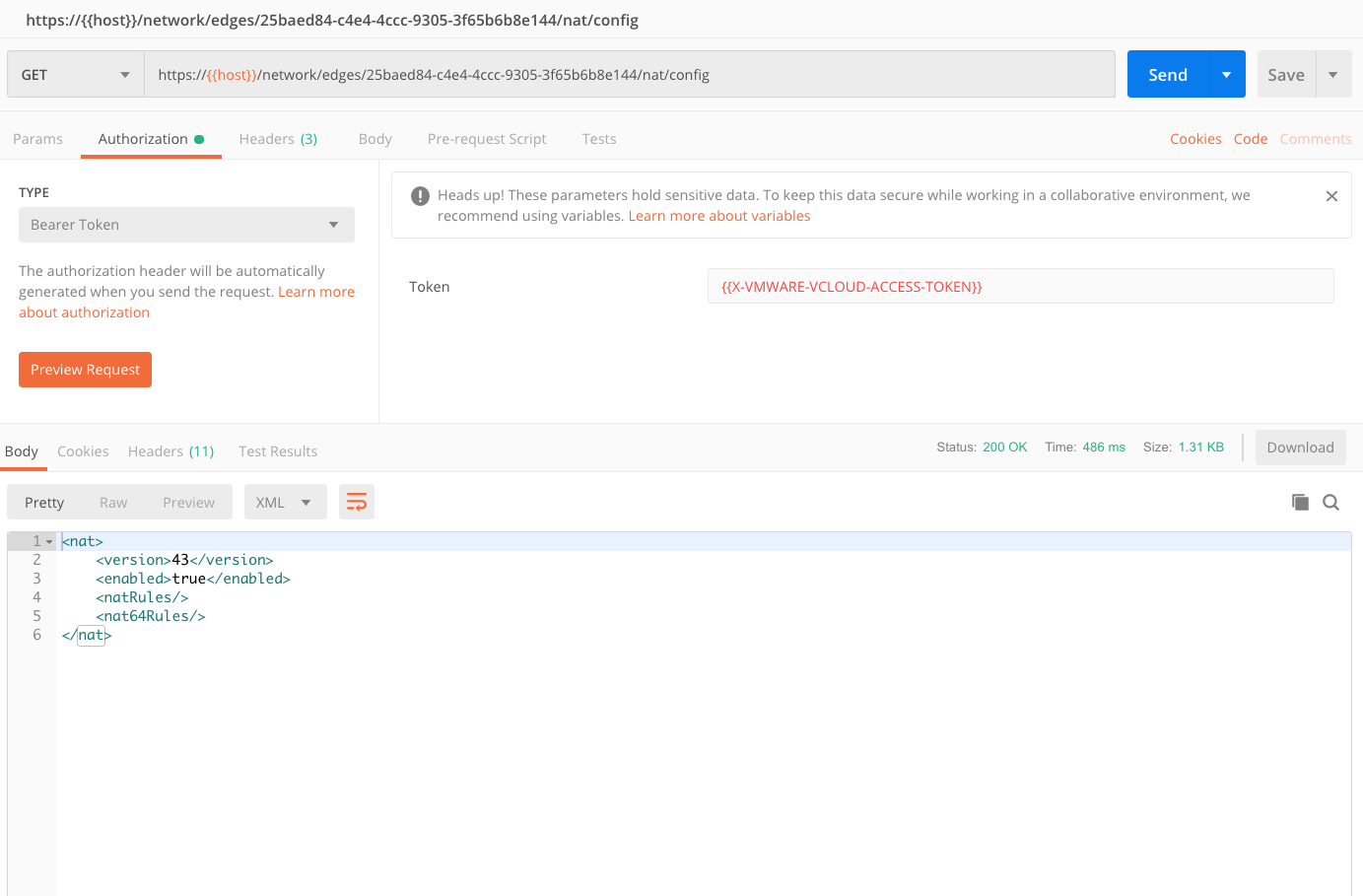

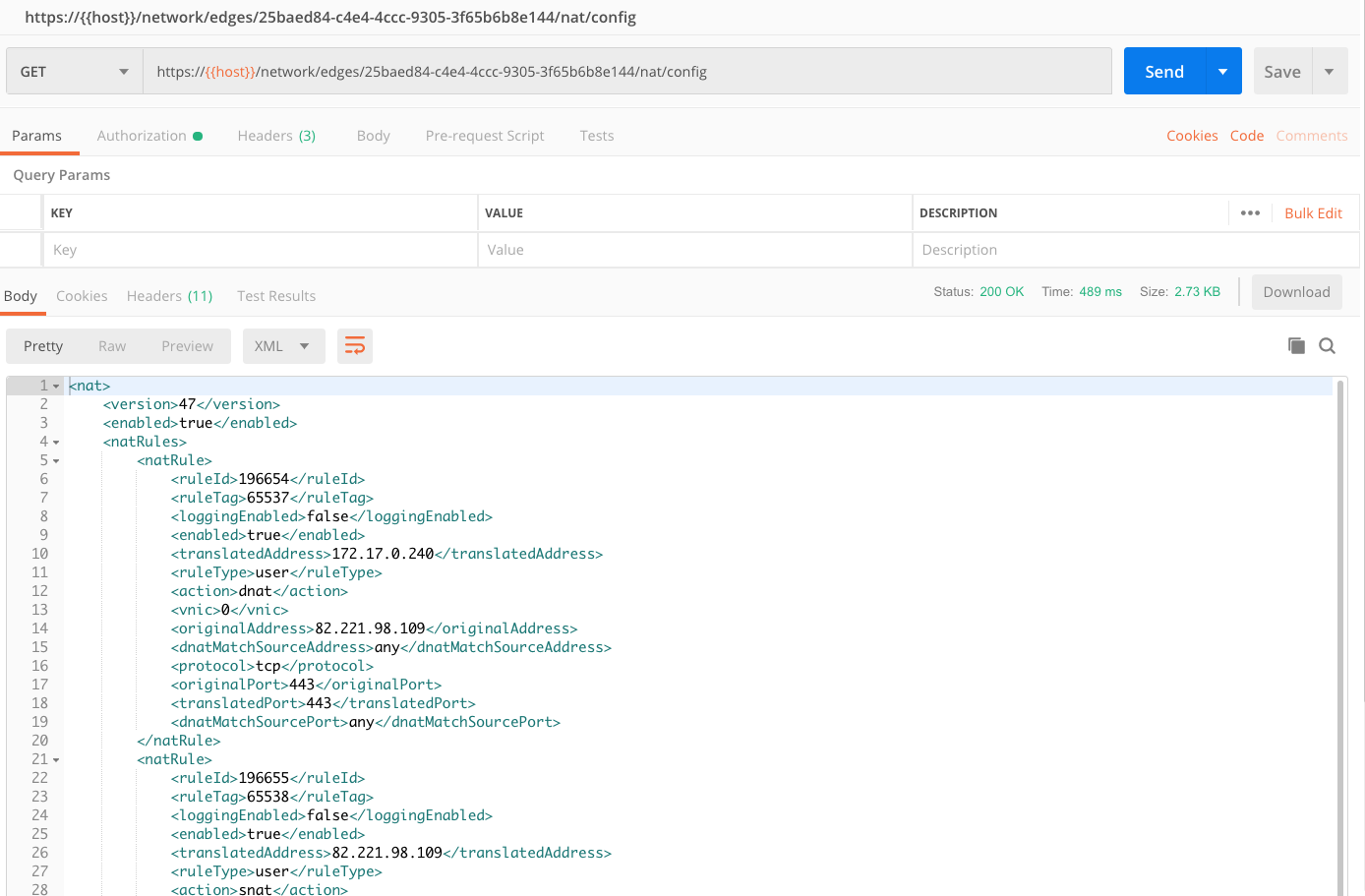

Below we are querying the existing NAT rules using a GET request against the NSX ESG. What we are returned is an empty config in XML.

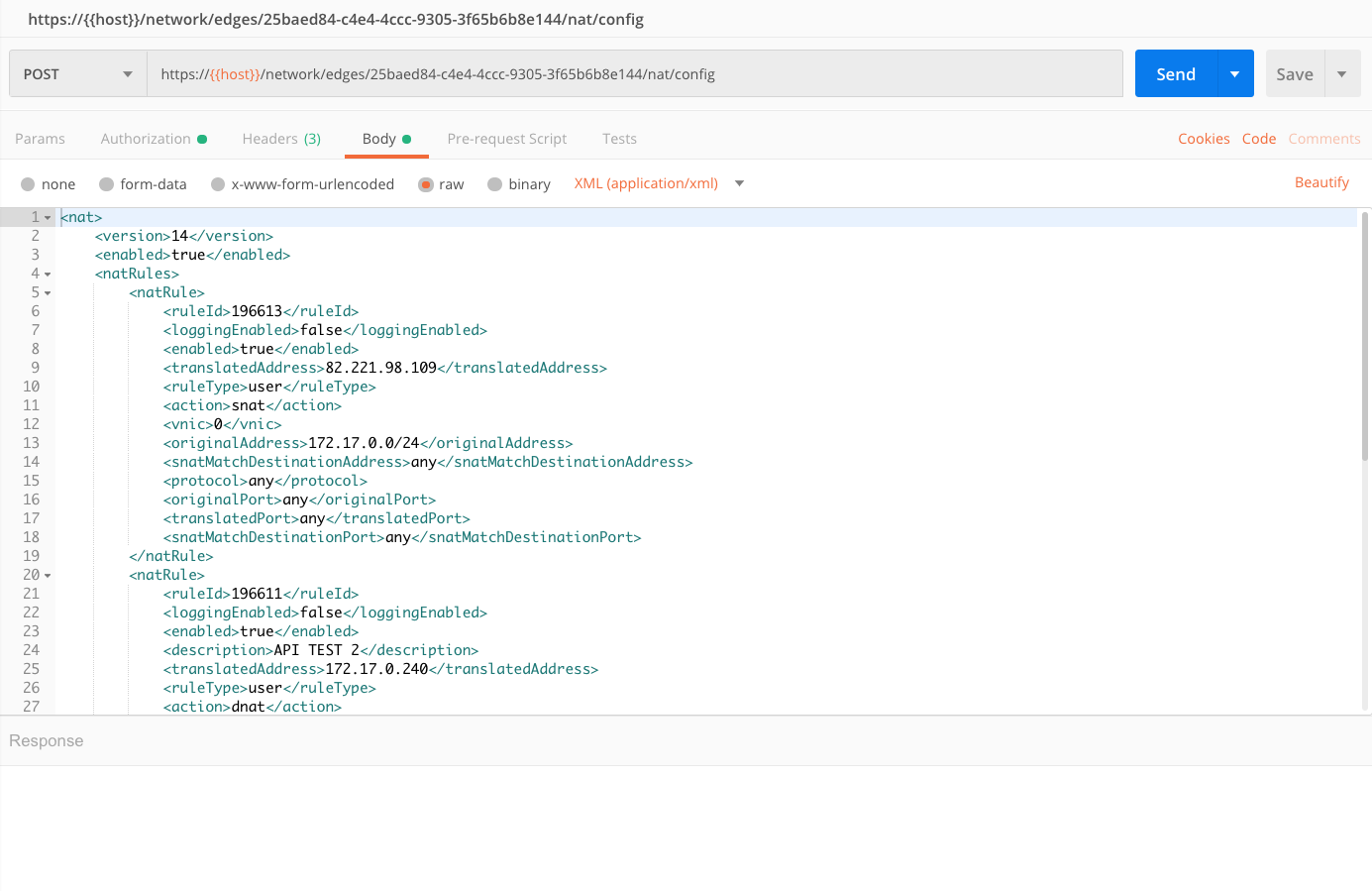

What needs to be done is to turn that request into a POST and craft an XML payload into the Body of the request so that we can configure the NAT rules as desired.

Redoing the GET request will now show that the NAT rules have been created.

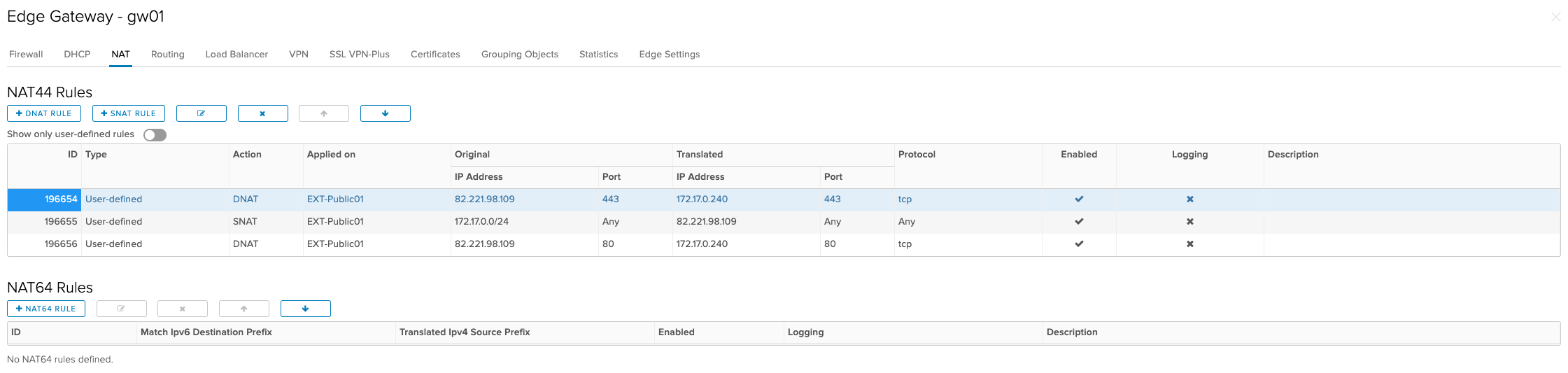

And will be shown in the vCD Tenant UI

From here we can update, append, reset or delete the NAT rules as per the API documentation. Each one of those actions will require a new call to the API and the same process followed as above.

Configuring Firewall and NAT Rules with Terraform:

For a primer on the vCloud Director Terraform Provider, read this post and also head over to Luca’s post on Terraform with vCD. As with the RESTful API example above, I will use Terraform IaC to configure the same Tenant NSX Edge Gateway’s Firewall and NAT rules. What will become clear using Terraform for this is that it is a lot more efficient and elegant that going at it directly against the APIs.

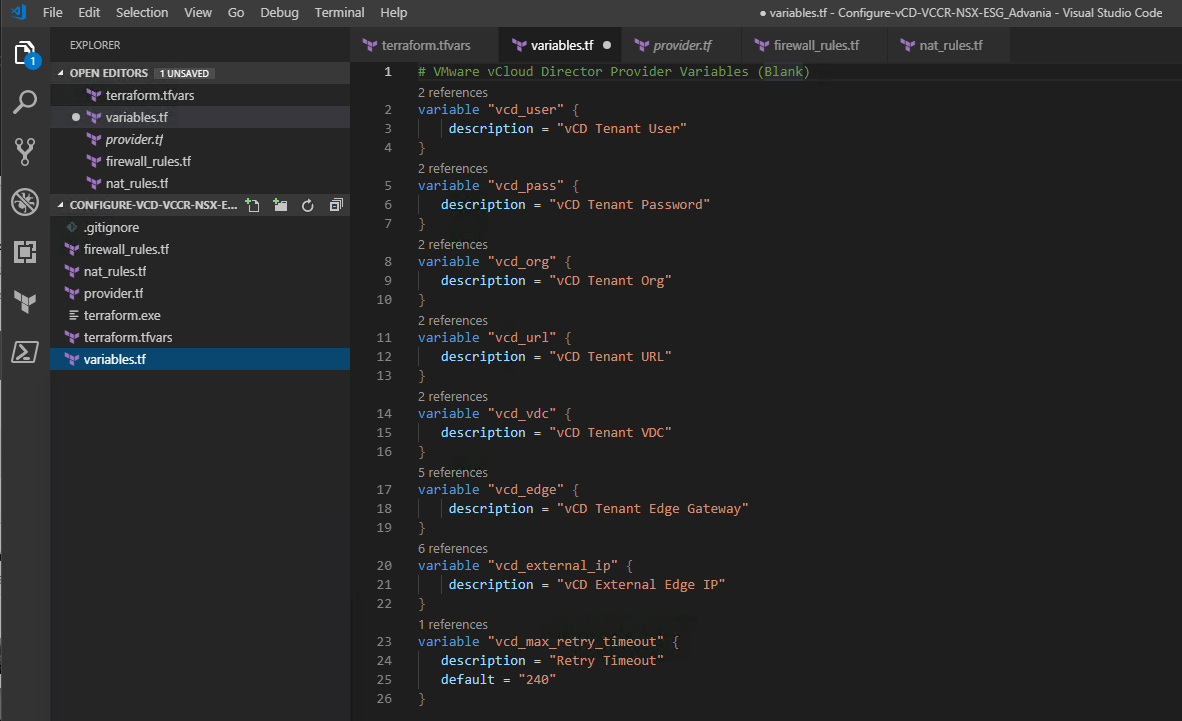

Initially we needs to setup the required configuration items in order for the Terraform Provider to talk to the vCD API endpoint. To do this we need to setup a number of Terraform files that declare the variables required to connect to the vCD Organization and then configure the terraform.tfvars file that contains the specific variables.

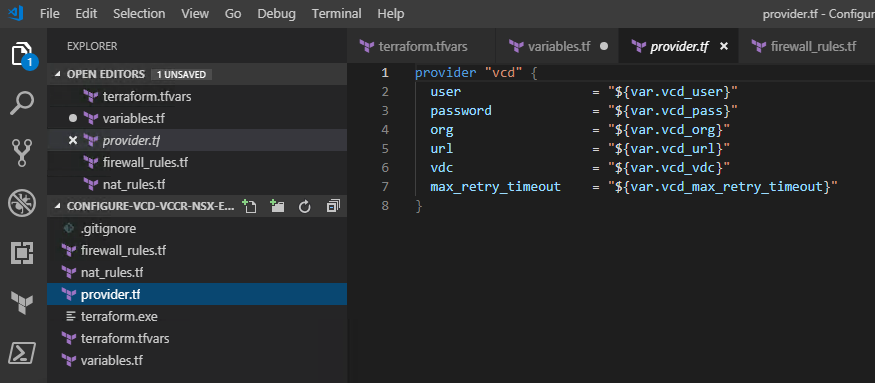

We also create a provider .tf file to specifically call out the required Terraform provider and set the main variables.

We contain all this in a single folder (seen in the left pane above) for organization and portability…These folders can be called as Terraform Modules if desired in more complex, reusable plans.

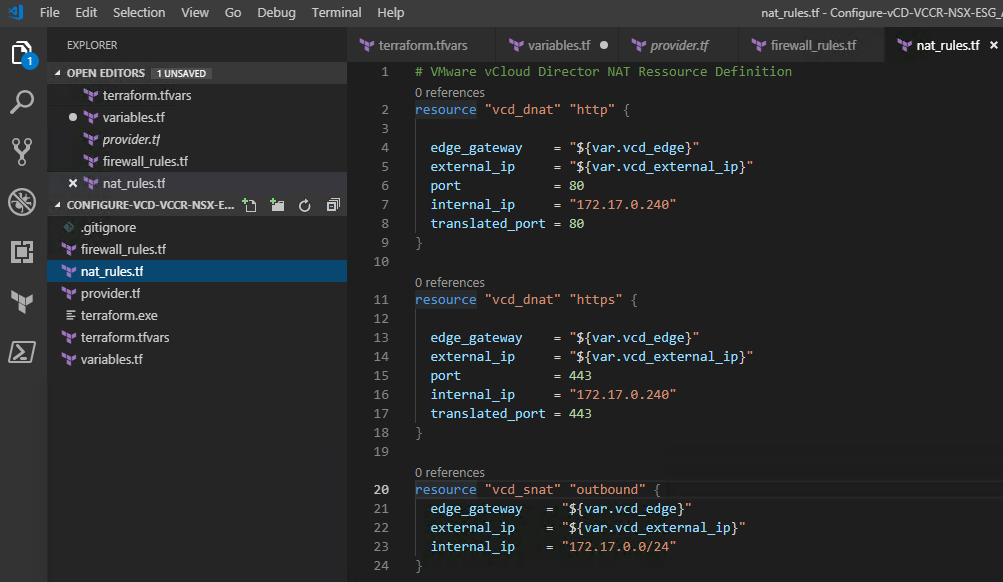

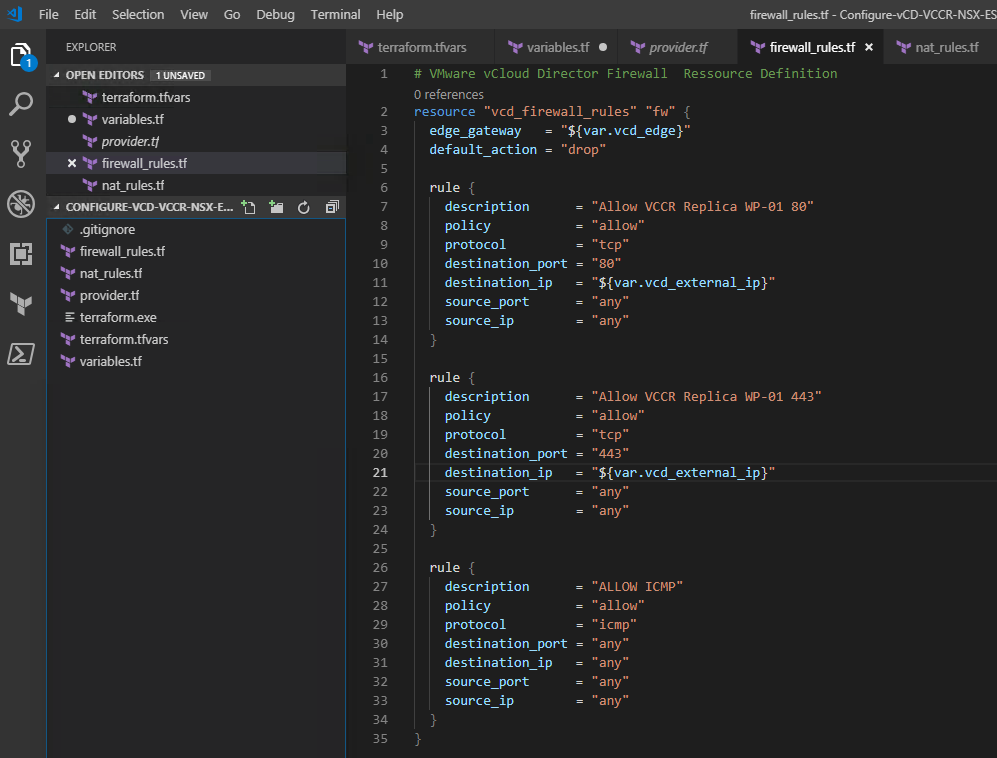

We then create two more .tf files for the Firewall and NAT rules. The format is dictated by the Provider pages which gives examples. We can make things more portable by incorporating some of the variables we declared elsewhere in the code as shown below for the Edge Gateway name and Destination IP address.

Once the initial configuration work is done, all that’s required in order to apply the configuration is to initialize the Terraform Provider, make sure that the Terraform Plan is as expected… and then apply the plan against the Tenant’s Organization.

As the video shows… in less than a minute we have the NSX Firewall and NAT rules configured. More importantly, we now have a desired state which can be modified at any time by simple additions or subtractions to the Terraform code.

Wrapping it up:

From looking at both examples, it’s clear that both methods of configuration do the trick and it really depends on what sort of IT Professional you are in terms of which method is more suited to your day to day. For those that are working as automation engineers, working with APIs directly and/or integrating them into provisioning engines or applications is going to be your preferred method. For those that want to be able to deploy, configure and manager their own infrastructure in a more consumable way, using a Terraform provider is probably a better way

The great thing about Terraform in my eyes is the fact that you have declared the state that you want configured and once that has been actioned, you can easily check that state and modify it by changing the configuration items in the .tf files and reapplying the plan. For me it’s a much more efficient way to programatically configure vCD than doing the same configuration directly against the API.

Ohhh… and don’t forget… you are still allowed to use the UI as well… there is no shame in that!

One comment

  • As a contributor to the project I must note that the architecture has evolved and it no longer uses pyvcloud under the hood. The project itself is split into two repos: terraform provider and SDK (which is used in provider later). Both repos are 100% Go.
